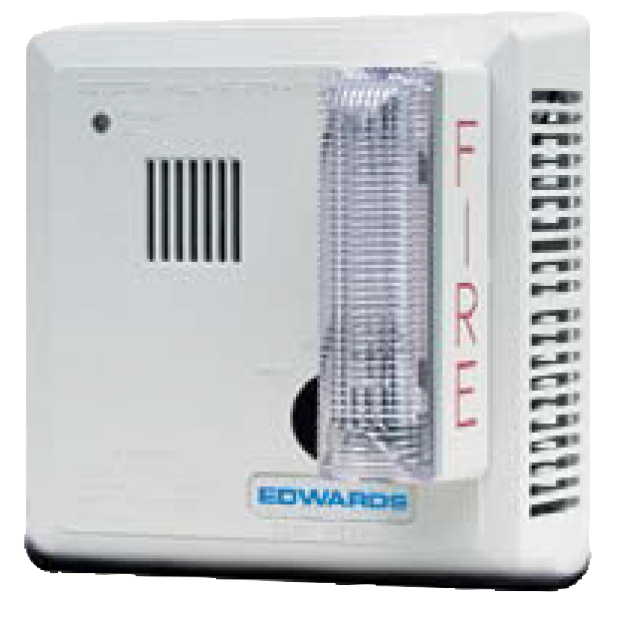

Model 517 Standalone Smoke Detector with Strobe by Edwards

Product Literature

Where to Buy
+1 (949) 583-1857
  • Photoelectric  Smoke Detector
  • Standalone Unit
  • Built-in Audible Signal
  • Built-in Strobe with “FIRE” Lettering
  • 120V AC with Optional 9V Battery Backup
  • For Non-Hazardous Applications

Features and Benefits

  • Quadra-port smoke entry
  • 3 position functional test switch
  • Solid-state LED condition indicator
  • Quick disconnect wiring harness
  • 9V DC alkaline battery back-up
  • Tandem connection up to 6 alarms per system
  • Dry contacts will activate from the tandem wire
  • Temporal pattern evacuation sounding device
  • 100dB @ 1m/90dB @ 10ft.
  • Operating temperature range: 40oF to 100oF (4.4oC to 37.8oC)



The Detector

Edwards 517 Series Single Station Smoke Detec- tors feature a solid state piezo signal and a strobe with “FIRE” lettering.

The 517TCS/517TCSB Series provides the 3 pulse temporal pattern evacuation tone as a standard feature. The smoke alarm operates on the light scattering principle, using a pulsing LED light source and a photodiode sensor in a fully screened sensing chamber. Upon activation, the alarm will emit a local audible signal and activate the high intensity strobe.

They are designed for ceiling or wall mounting on a 4″ (102mm) square mounting box using a universal mounting plate, and have a quick- disconnect plug connection.

Technical Specifications and Ordering Information

Technical Specifications

Models  517TCS-C & 517TCSB-C
Operating Voltage 120V AC
UL 1971 Strobe Output 177 cd
dB at 1m/10ft. 100/90
Mounting Ceiling
Nominal Sensitivity 2.5% Obscuration
Auxiliary Relay (Standard)

1 Form C
(1 A @ 24V DC; 0.6 A @ 125V AC)
Models  517TCS-W & 517TCSB-W
Operating Voltage 120V AC
UL 1971 Strobe Output 177 cd
dB at 1m/10ft. 100/90
Mounting Wall
Nominal Sensitivity 2.5% Obscuration
Auxiliary Relay (Standard)

1 Form C
(1 A @ 24V DC; 0.6 A @ 125V AC)

Ordering Information

Description Approx. Shipping Weight (lb.)
517TCS-C 1.2
517TCS-W 1.2
517TCS-C 1.6
517TCSB-W 1.6
